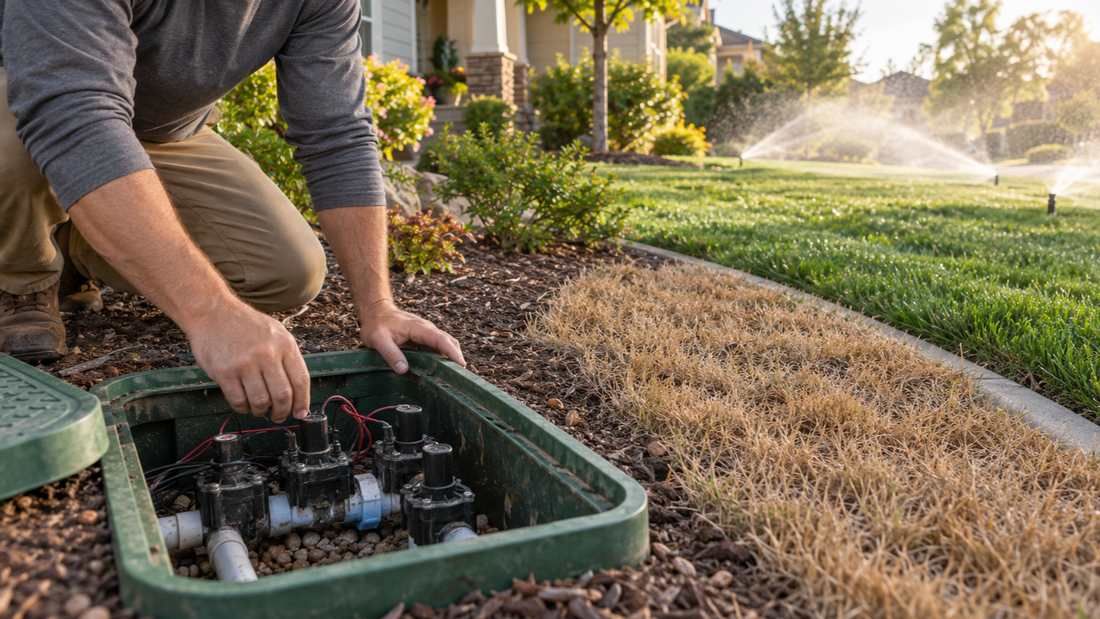

Homeowner inspecting an irrigation valve box beside a sprinkler zone that will not run

Why One Sprinkler Zone Won’t Turn On

When one sprinkler zone refuses to start but the rest of the system works, the failure is usually local. The controller may not be sending power to that station. A wire splice may have opened. The solenoid may have failed. Or the valve may receive the signal but still be unable to move water.

The useful question is not “Which part should I replace?” It is “Where does the command stop?” A few controlled tests can separate a scheduling problem from an electrical fault and a hydraulic problem without digging up the yard at random.

Key takeaway: First compare the failed zone with a working zone. Then run the failed zone manually from the controller, test whether its valve opens manually, and inspect the low-voltage circuit only with the correct power state. If the valve opens by hand but not from the controller, focus on the controller output, common wire, station wire, splices, and solenoid. If it will not open by hand, focus on water supply, flow control, the valve body, filter, or pressure.

How a sprinkler zone turns on

A conventional residential system has two paths that must work at the same time:

  • The electrical path: the controller applies low-voltage alternating current to one station wire. Current passes through the valve solenoid and returns on the shared common wire.
  • The hydraulic path: the energized solenoid lets the valve’s internal mechanism open. Pressurized water then moves from the mainline into that zone’s lateral pipes and sprinkler heads.

The Irrigation Association’s laboratory protocol for conventional soil-moisture controller testing describes controllers applying 24 volts AC to zone solenoid valves. That is a useful category-level description, not permission to assume every controller or latching valve is wired the same way. Battery-operated DC valves and two-wire decoder systems use different diagnostics. If you do not know which system you have, stop before electrical testing and identify the controller and valve models.

Cutaway showing a controller signal traveling through zone wiring to open a sprinkler valve
A conventional zone needs both an intact low-voltage circuit and a valve that can pass water.

That two-path model explains why swapping parts too early wastes time. A new controller cannot fix a cut field wire. A new solenoid cannot fix a closed irrigation shutoff. And a clean nozzle cannot help when the valve never opens.

Start with the pattern, not the toolbox

Run one known-good zone for two minutes, then try the failed zone for the same duration using the controller’s manual or quick-run function. Watch and listen at both the controller and valve box.

If every zone is dead

This is probably not a single-station problem. Check the controller’s power, global pause or off state, rain or freeze sensor status, irrigation shutoff, master valve, pump, and any error message. A shared common-wire break can also disable multiple zones. Rain Bird’s zone troubleshooting sequence starts with the master water supply and shutoff devices before moving to individual station circuits.

If only one zone is dead

The main water source and controller power are probably available because another zone works. Focus on the failed station’s program assignment, terminal, dedicated field wire, splices, solenoid, valve, and downstream piping.

If the zone starts but heads barely rise

That is not the same symptom as a completely dead zone. Look for a partly closed flow-control stem, clogged filter, broken pipe, too many heads, or low dynamic pressure. Use the separate sprinkler pressure test and zone-by-zone flow measurement workflows rather than treating weak spray as an electrical failure.

A safe step-by-step diagnostic sequence

1. Rule out a controller setting

  1. Confirm the controller is powered and set to run, not off or paused.
  2. Check that the failed station has a nonzero run time.
  3. Look for an active rain, freeze, or other sensor hold.
  4. Start that station manually. Do not wait for the next scheduled cycle.
  5. Record any station-specific error before clearing or resetting anything.

Do not factory-reset the controller as a first move. A reset can erase schedules and hide the original symptom without repairing a field fault. Hunter’s controller troubleshooting material treats a station-number error as evidence that can point to a shorted solenoid, damaged field wiring, or a poor connection.

2. Confirm water can reach the valves

Verify that the irrigation shutoff is fully open. If the system uses a pump or master valve, confirm it operates when a working zone runs. A failed master valve, pump-start circuit, or closed supply usually affects more than one zone, but plumbing layouts vary.

If the property uses secondary irrigation water, inspect the system filter. Utah State University Extension notes that filters are commonly located between the irrigation supply and valve box. Shut off the main irrigation water before disassembling a filter, valve, or pressurized component.

3. Find the correct valve

Valve boxes may be buried under mulch or turf, and one box can contain several valves. Identify the target valve without guessing:

  • Run a neighboring zone and listen for the solenoid click.
  • Trace the station wire color from the controller if it remains consistent at the valve box.
  • Use an existing zone map or wire labels.
  • If needed, have one person operate the controller while another listens at the box.

The broader irrigation-system overview explains how controllers, station wires, valves, mainlines, and lateral lines fit together.

4. Perform the manual-valve test

Use the valve manufacturer’s instructions. Many conventional valves can be opened manually by carefully turning the solenoid or bleed control a small amount. Do not remove the solenoid from a pressurized valve, and do not force an unfamiliar mechanism.

Opening a sprinkler valve manually to separate electrical and hydraulic faults
If the zone waters when its valve is opened manually, the hydraulic path works and the fault is probably electrical.

If the zone runs manually: the mainline, valve diaphragm, lateral pipe, and heads can pass at least some water. Move to the electrical circuit.

If the zone does not run manually: verify the shutoff, pump or master valve, valve flow-control position, filter, and available pressure. The valve may be clogged, installed backward, or internally damaged. Rain Bird’s valve guide directs users to inspect the opening mechanism, bleed ports, and diaphragm only after shutting off the water.

5. Inspect terminals and field splices

Disconnect power before moving wires or testing resistance. Photograph the terminal strip first. Gently tug the failed station wire and common wire to confirm they are seated. Then inspect the valve-box splices for corrosion, loose conductors, broken insulation, and connectors that are not rated for wet locations.

A common-wire fault can be deceptive. Because multiple valves share the return path, the symptoms depend on where that wire is broken. Zones beyond the break may fail together while closer zones continue to work.

6. Use a multimeter only if you understand the test

Voltage and resistance tests require opposite power states:

  • Station-output voltage: the controller must be energized and the station must be running. This is a live low-voltage test. Stay out of the household-voltage compartment.
  • Circuit resistance: controller power must be off, and the field circuit should be disconnected as the controller manual directs. Never measure resistance on an energized circuit.
Testing a disconnected sprinkler zone circuit with a digital multimeter
Resistance testing is done with power off and the field circuit disconnected from the controller.

Compare the failed circuit with a working circuit and with the manuals for your controller and solenoid. Rain Bird’s published conventional-zone guide uses 24–28 VAC as its expected station output and 20–60 ohms as its normal resistance band. It classifies very low resistance as a likely short and resistance above 60 ohms as a possible bad splice, nicked wire, open solenoid, or broken wire. Those values describe that guide’s test method; they are not universal specifications for every brand, valve, decoder, or DC-latching solenoid.

If you are not comfortable distinguishing the low-voltage terminals from line voltage, stop and call a licensed irrigation professional or electrician as appropriate. A hardwired controller’s household-voltage compartment is not a DIY diagnostic area.

7. Separate the solenoid from the field wire

If the complete station circuit tests abnormally, the next controlled step is to test the solenoid separately according to its manufacturer’s instructions. A normal solenoid with an abnormal end-to-end circuit points toward the field wire or splices. An abnormal solenoid reading points toward the solenoid. A known-good compatible solenoid can also help isolate the fault, but only swap identical models and shut off water and power first.

A click is useful evidence, not final proof. A solenoid can click while a blocked pilot passage or damaged diaphragm prevents the valve from opening.

8. Inspect the valve body last

Once the controller, circuit, and solenoid are reasonably cleared, shut off the irrigation water, relieve pressure, and follow the exact valve manual. Inspect the diaphragm, spring, pilot passages, flow control, and debris screen if present. Keep parts in order. Replace damaged components with model-compatible parts.

If you find standing water, erosion, or an unexplained meter change around the system, switch to the sprinkler leak diagnostic before reopening the supply.

What the test results usually mean

Observation Most useful next check
No zones run Power, global pause, sensor hold, shutoff, pump or master valve, shared common
Only one zone fails Station setting, terminal, dedicated wire, splice, solenoid, valve
Valve opens manually Controller output and the full electrical circuit
Valve will not open manually Water supply, flow control, filter, pressure, valve internals
Station error or very low resistance Shorted solenoid, crossed conductors, damaged insulation
Open or unusually high resistance Loose or corroded splice, cut wire, open solenoid
Zone runs but spray is weak Filter, flow control, break, pressure, head count, nozzle condition

Common mistakes that make diagnosis harder

  • Resetting first. This can erase schedules and fault history while leaving the hardware problem unchanged.
  • Opening a pressurized valve. Shut off the irrigation supply and relieve pressure before disassembly.
  • Measuring resistance with power on. This can damage the meter or controller and produces meaningless results.
  • Assuming white is always common. White is common in many installations, but field wiring may not follow convention. Verify the terminal and circuit.
  • Replacing the controller before isolating the field circuit. A shorted solenoid or damaged cable can make a new controller behave the same way.
  • Confusing “dead” with “weak.” Heads that rise slowly point to flow or pressure as well as possible valve restriction.

When controller replacement makes sense

Replace the controller only after you have evidence that the station output is faulty while the field wiring, solenoid, valve, and water supply are serviceable—or when the controller has broader power or module failures that cannot be repaired economically.

For a standard wired system, the current SoilDrops Controller Gen 2 is published as supporting standard 24 VAC valves, up to eight zones, and a master valve or pump relay. SoilDrops also lists manual runs plus valve and wiring alerts among its free controller features. Compatibility still depends on the existing system: two-wire decoder systems, DC-latching valves, and hose-faucet timers are different categories. Diagnose the field fault before choosing a replacement.

Frequently asked questions

Why would one sprinkler zone stop working while the others run?

Because each zone normally has its own station output, field wire, solenoid, and valve. A failure in any one of those components can disable one zone while shared power and water remain available to the others.

Can a sprinkler solenoid click and still be bad?

Yes. A click shows that something moved, but it does not prove the coil has the correct electrical behavior under load or that the valve’s pilot passages and diaphragm can open. Combine the sound with manual operation and model-appropriate electrical tests.

Does a working manual valve prove the solenoid is bad?

No. It proves the hydraulic path can open. The fault could still be at the controller terminal, station wire, common wire, splice, or solenoid. Test the circuit before buying parts.

What does an open sprinkler-zone circuit mean?

It means the electrical path is interrupted. Common causes include a loose or corroded splice, cut conductor, disconnected common wire, or open solenoid coil. The fault location requires sectional testing or wire tracing.

Should I test sprinkler voltage myself?

Only if you can positively identify the low-voltage station and common terminals, understand the meter setting, and follow the controller manual. Do not enter the household-voltage compartment. Hire a professional when the controller is hardwired or the system type is uncertain.

How can I prevent a repeat failure?

Keep valve-box splices watertight, protect cables from shovels and edging, observe each zone monthly, and record wire colors and valve locations. The sprinkler maintenance checklist can turn those checks into a routine.

Use the failure path as your repair plan

A silent zone becomes manageable when you test it in order: controller command, water supply, manual valve operation, terminals and splices, circuit resistance, solenoid, then valve internals. Stop when the evidence changes. That is the point where the repair becomes specific instead of speculative.
