Measure Sprinkler Water Use One Zone at a Time

A sprinkler controller can tell a zone to run for 15 minutes. It cannot tell you how many gallons moved unless the system has actual flow measurement. That missing number matters: two zones with the same runtime can use very different volumes because their nozzles, pressure, pipe sizes, and number of heads are different.

A short meter test turns runtime into evidence. With a utility meter or a hose-mounted flow meter, you can measure the gallons used by one zone, calculate its flow in gallons per minute (GPM), establish a baseline, and notice when something changes. The test does not replace a catch-cup audit or a soil-moisture check. It answers a different question: how much water passed through this zone?

What a zone-flow test tells you

The useful outputs are simple:

• Gallons per test: the volume that passed through the meter while one zone ran.
• Gallons per minute: the zone’s average flow during the test.
• Gallons per scheduled run: GPM multiplied by the zone’s programmed runtime.
• A baseline: a reference you can compare with a later test after a repair, nozzle change, or unexplained water-use increase.

The American Water Works Association describes accurate metering as a basis for billing, conservation feedback, system evaluation, and loss control. At a home, the same principle works on a smaller scale: measuring volume gives you something more useful than guessing from minutes alone (AWWA, “Metering and Accountability”).

Flow is not the same as coverage. A zone can use a large volume while missing a corner, misting in high pressure, or sending water onto pavement. Use a catch-cup test to measure precipitation rate and distribution across the lawn. Use the meter test to measure total water moving through the zone.

Choose the meter that matches the system

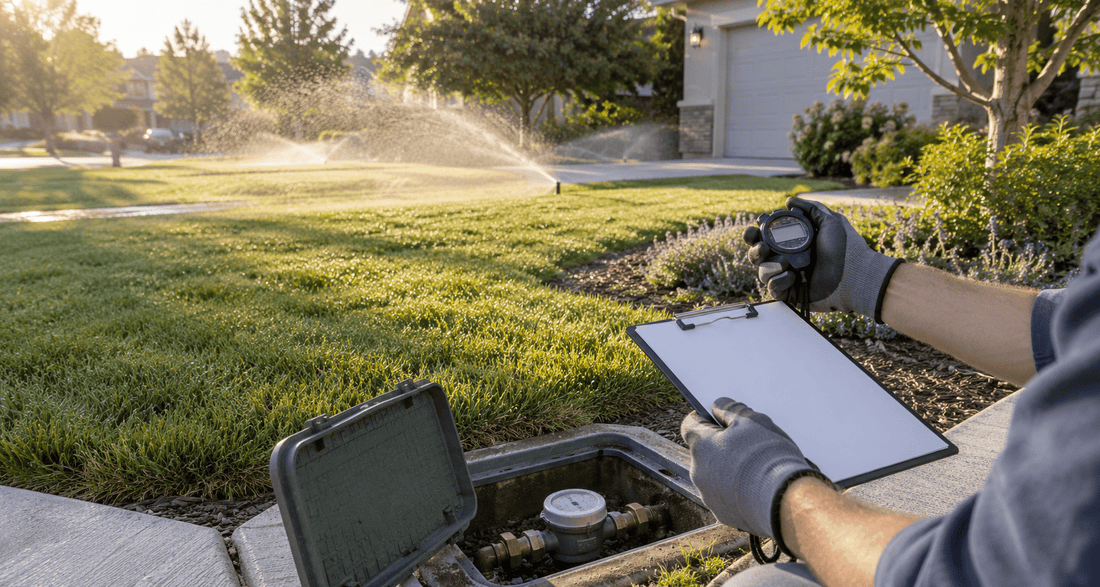

For an in-ground sprinkler system: use the utility meter

University of Florida IFAS guidance calls the utility-meter method one of the quickest ways to measure the actual application rate of a residential irrigation zone. If the home does not have a separate irrigation meter, the household utility meter can be used only while no other water is being used. The publication recommends measuring every zone because spray, rotary-nozzle, rotor, and drip zones can have substantially different application rates (UF/IFAS, “Operation of Residential Irrigation Timers”).

Do not assume the register is in gallons. Residential meters may show gallons, cubic feet, or a multiplied unit. Portland Water Bureau, for example, bills in CCF: one CCF is 100 cubic feet, or 748 gallons. Read the unit and multiplier printed on the meter or follow your utility’s instructions before doing any math (Portland Water Bureau meter guide).

Open a meter box cautiously. Covers can be heavy, and insects or small animals may be inside. Replace the cover when finished. If the box is locked, sealed, flooded, damaged, or unsafe to access, do not force it. Contact the utility or use another measurement method.

For a hose-fed sprinkler or drip line: use an inline hose meter

A hose-mounted meter is often easier when a faucet supplies a portable sprinkler, garden hose, or hose timer. Place it upstream of the timer so every downstream gallon passes through the meter. This method does not measure an unrelated in-ground system.

SoilDrops’ current FLM-001 flow meter page states that the meter fits a standard 3/4-inch garden-hose connection and displays single-session volume, cumulative volume, real-time flow, and a seven-day daily average. SoilDrops publishes a ±5% accuracy specification within its supported 0.5–12 GPM and 0–116 PSI ranges. Those are SoilDrops specifications, not independent test results. The support guide says to calibrate the meter with a known quantity, such as a 5-gallon bucket, and notes that readings below about 0.5 GPM may be unreliable (SoilDrops FLM-001 support).

The FLM-001 is for outdoor cold-water garden-hose connections, not indoor plumbing or permanent pressurized installation. SoilDrops also instructs users to disconnect, drain, and store it indoors before freezing weather.

Measure one sprinkler zone step by step

1. Write down the meter’s unit and multiplier. Look for “gallons,” “cubic feet,” “CCF,” or a multiplier such as ×10 or ×100. Photograph the face for your own reference if that is allowed and safe. Do not treat every displayed digit as one gallon.

2. Stop every other water use. Pause the washing machine, dishwasher, ice maker, faucets, toilets, pool fill, and other irrigation. A shared household meter records all of them. If anything else runs during the test, the zone result will be overstated.

3. Check the quiet baseline. With everything off, watch the low-flow or leak indicator. Denver Water notes that continued movement can reveal an indoor or underground leak. If the meter moves when no intentional use is occurring, diagnose that first or the zone test will be contaminated (Denver Water leak guide). SoilDrops’ sprinkler-leak walkthrough explains how to separate indoor, mainline, valve, and lateral-line clues.

4. Record the starting reading. Copy every visible digit that the utility tells you to use. For an analog meter, note the sweep-hand position as well as the odometer-style register. For a hose meter, reset the session counter if its instructions call for that.

5. Run one zone for a timed interval. Start only the zone being measured. UF/IFAS uses a two-minute residential example, which is long enough to create a readable change on many meters without turning the test into a full irrigation cycle. Use the same duration when comparing zones, unless a very low-flow zone needs a longer test for a readable difference.

6. Record the ending reading immediately. Stop the zone, then capture the meter before anyone uses water elsewhere. Subtract the starting value from the ending value.

7. Convert to gallons and calculate GPM. If the meter already reports gallons, no unit conversion is needed. If it reports cubic feet, multiply the difference by 7.4805; that conversion is published by the U.S. Geological Survey (USGS conversion factors). Then divide gallons by test minutes.

8. Repeat and label the result. Repeat the test if the value is surprising. Record the date, zone, runtime, GPM, operating pressure if known, and any observations such as misting, a head that failed to rise, or pooling. Then move to the next zone.

A worked example

Suppose a utility meter reads 4,218.6 cubic feet before a test and 4,221.0 cubic feet after one sprinkler zone runs for two minutes.

• Meter difference: 4,221.0 − 4,218.6 = 2.4 cubic feet
• Gallons used: 2.4 × 7.4805 = 17.95 gallons
• Average flow: 17.95 ÷ 2 minutes = 8.98 GPM
• Estimated water in a 20-minute run: 8.98 × 20 = 179.6 gallons

That volume becomes more useful when you know the irrigated area. UF/IFAS gives this average application-rate equation:

Application rate (inches/hour) = 96.3 × GPM ÷ zone area (square feet)

If the example zone covers 1,200 square feet, its average application rate is 96.3 × 8.98 ÷ 1,200 = 0.72 inch per hour. A 20-minute run would therefore apply an average depth of about 0.24 inch.

The word average matters. This calculation assumes the measured water is distributed across the stated area. It cannot reveal dry corners or overwatered spots. Verify distribution with catch cups before using the result to set a final runtime. If pressure or throw looks wrong, follow the sprinkler-pressure test rather than adding minutes to compensate for poor coverage.

How to interpret a high or low result

There is no universal “correct” residential zone GPM. A small drip zone and a rotor zone should not match. Compare each zone with its own prior baseline, design flow, or the sum of current nozzle flow specifications at measured operating pressure.

UF/IFAS notes that lower-than-normal flow can point to a partially closed valve, obstruction, clogged emitters, or pump trouble. Higher-than-normal flow can point to a broken pipe, defective flush valve, too many zones running, or worn nozzles. These are diagnostic leads, not verdicts (UF/IFAS, “Water Measurement for Agricultural Irrigation and Drainage Systems”).

• Low flow plus weak throw across the zone: check operating pressure, valve position, filters, and supply restrictions.
• Low flow at only one head: inspect that nozzle, screen, riser, and local lateral connection.
• High flow plus a geyser or pooling: stop the zone and inspect for a broken head, riser, fitting, or lateral line.
• Normal total flow but uneven lawn coverage: run a catch-cup audit; the problem may be spacing, arcs, wind, pressure, or mixed nozzles.
• Flow changed after a nozzle replacement: confirm the new nozzle’s published flow at the actual operating pressure and make sure matched precipitation was preserved.

EPA WaterSense recommends inspecting irrigation systems monthly for leaks, broken or clogged heads, overspray, and other problems. A zone-flow log makes that inspection more quantitative, but the walk-through still matters (EPA WaterSense watering tips).

Common mistakes that ruin the test

• Misreading the unit. A change of 1.0 cubic foot is about 7.48 gallons; a change of 1 CCF is 748 gallons. Confirm the register before converting.
• Letting the house use water. A toilet refill or washing-machine cycle becomes part of the measured “zone” volume.
• Testing two zones together. The result cannot be assigned to either zone and may hide a valve or controller problem.
• Treating GPM as coverage. Total flow does not tell you whether water landed uniformly.
• Using a test interval too short for the meter’s resolution. Extend the run and divide by the longer time rather than estimating between unreadable marks.
• Comparing different operating conditions. Keep other water use, valve state, test duration, and equipment configuration consistent. Pressure changes can alter nozzle flow.
• Turning a suspicious number into a schedule immediately. First inspect the zone. A broken head should be repaired, not scheduled around.

Build a simple zone record

Keep one row per zone with the date, test minutes, gallons, GPM, scheduled runtime, estimated gallons per run, and notes. Recheck after repairs and at the beginning of irrigation season. For a new or redesigned system, pair the flow result with the zoning, pressure, and emitter calculations in our home drip-irrigation design guide.

A baseline is more valuable than a one-time “good” number. If Zone 4 normally measures 8.9 GPM and later measures 11.8 GPM under the same conditions, you have a specific change to investigate. If it drops to 6.2 GPM, look for a restriction, valve issue, or clogged equipment. The meter narrows the search; the field inspection identifies the cause.

Frequently asked questions

Can I use my household water meter to measure a sprinkler zone?

Yes, if that meter records the irrigation supply and every other water use is stopped during the test. Record the unit and multiplier exactly. If the meter is inaccessible or unsafe to open, use a utility portal where it offers adequate resolution, contact the utility, or use an appropriate inline meter.

How long should I run each zone for the test?

Two minutes is a practical residential starting point used in the UF/IFAS example. Extend the interval for a low-flow zone or a coarse meter register, then divide gallons by the actual minutes. Avoid runoff; stop sooner if water leaves the intended landscape.

What is a normal GPM for a sprinkler zone?

There is no single normal value. Flow depends on head count, nozzle size, operating pressure, pipe capacity, and irrigation type. Compare the measured value with the zone’s own baseline or a design calculation using current manufacturer nozzle data.

Does a flow test replace a catch-cup test?

No. A meter measures total volume and average flow. Catch cups measure the depth and uniformity that reaches the landscape. Use both when calibrating a spray or rotor zone.

Can a flow reading identify a leak?

It can reveal unexpected or changed flow, but it does not locate the leak by itself. A high-flow change plus pooling or a visible geyser is strong evidence. A leak indicator that moves while everything is off points to a different diagnostic path.

Can I estimate irrigation cost from the result?

Yes. Convert the measured volume into the billing unit shown on your utility bill, then apply the current water and any applicable sewer or tiered charges. Rates vary by utility and season, so use your own bill rather than a national average.

Your next useful measurement

Measure the highest-use zone first, then the zone that looks weak or unusually wet. Record both results before changing hardware or runtime. Once you know gallons, GPM, and distribution, you can separate a scheduling problem from a pressure, coverage, or leak problem—and make one targeted correction instead of adding minutes everywhere.
