Build a Drip Irrigation System That Waters Evenly

A drip system can look simple: tubing, a few emitters, and a timer. The design problem begins when those parts have to deliver similar amounts of water to plants with different roots, soils, exposures, and elevations. A system that is assembled without a flow budget or zone plan may run, but the last emitters can underperform, filters can clog, and one schedule can soak a shrub while leaving a raised bed dry.

This guide shows how to design a dependable residential drip irrigation system from the water source outward. It focuses on the decisions that matter most: hydrozones, emitter type and spacing, pressure control, available flow, runtime, and field verification.

Why drip irrigation design matters

Drip irrigation is a form of microirrigation: low-pressure, low-flow application near the root zone. The U.S. Environmental Protection Agency says microirrigation can use 20% to 50% less water than conventional sprinklers, but that range is not a promise for every yard. Design, scheduling, maintenance, climate, and the system being replaced all affect the result. The important mechanism is straightforward: slow application near roots can reduce overspray, runoff, and evaporation. See the EPA’s current microirrigation guidance.

Efficiency is not automatic. A long, poorly regulated lateral may deliver different flows from one end to the other. A clogged emitter can quietly leave one plant dry. Widely spaced emitters may wet only a narrow part of the root system. Colorado State University Extension emphasizes that any system is only as efficient as its watering schedule and that common failures include missing filters or pressure reducers, excessive mainline length, and too many emitters on one zone.

Start with hydrozones, not hardware

A hydrozone is a group of plants that can reasonably share one valve and schedule. Before buying tubing, sketch the property and separate areas by:

• Plant water demand: vegetables and annuals generally should not share a schedule with established drought-adapted shrubs.
• Root form and plant size: a row crop, a dense perennial bed, and a young tree need different wetting patterns.
• Sun and exposure: a hot west-facing bed often dries faster than the same plants in afternoon shade.
• Soil and drainage: sandy soil spreads water differently from clay and commonly needs a different emitter layout.
• Slope and elevation: pressure changes along a slope can change output from non-compensating emitters.

If two areas need meaningfully different runtimes or frequencies, put them on separate zones. That may mean a separate valve, a separate hose-timer outlet, or a manual shutoff branch. Our hydrozoning guide explains how to group an existing landscape before changing irrigation hardware.

Choose the right delivery pattern

Inline drip tubing for dense beds

Inline tubing has emitters built into the line at fixed intervals. It works well for vegetables planted in rows, groundcovers, and densely planted beds because it creates overlapping wetted strips. Utah State University Extension recommends basing emitter and lateral spacing on soil texture, crop spacing, and the wetted width produced by the chosen product. The manufacturer’s flow, spacing, pressure range, and maximum run length remain the controlling specifications.

Point-source emitters for individual plants

Point-source emitters deliver a rated flow near a shrub, perennial, container, or young tree. They are easy to move or add as a plant grows. Avoid treating the trunk as the permanent target. Roots expand beyond the original root ball, so emitter placement and number should expand with the canopy. The University of Arizona Cooperative Extension recommends planning for growth and moving or adding emitters toward the plant’s dripline over time.

Pressure-compensating emitters for difficult sites

A pressure-sensitive emitter releases more water as pressure rises. A pressure-compensating emitter is designed to hold flow steadier across an allowed pressure range. Pressure compensation is especially useful on sloped sites, long laterals, or zones with changing elevation. It does not eliminate the need to follow the manufacturer’s pressure and length limits.

Do not mix conventional spray heads and drip emitters on the same valve simply because both can be connected. They operate at different pressures and apply water at radically different rates. The University of Arizona recommends separate valves for spray and drip. Likewise, Colorado State advises keeping higher-flow microsprays separate from low-flow drip emitters.

Let soil determine emitter spacing

Water does not leave an emitter as a perfect vertical cylinder. It moves downward under gravity and sideways through capillary forces. Sand usually produces a relatively narrow, deep wetted shape. Finer-textured soil generally spreads water farther sideways. Real wetting patterns also depend on soil structure, compaction, organic matter, layering, emitter flow, and runtime.

Extension recommendations provide starting points, not universal dimensions. Colorado State, for example, lists closer emitter spacing in sand than in loam or clay. Utah State notes that sandy soil may require more emitters to cover enough of a perennial’s root area even when each irrigation event is shorter. Use those principles, then run a field test:

1. Operate the proposed layout for a measured time.
2. Wait long enough for redistribution—often an hour is more revealing than an immediate check.
3. Dig narrow inspection holes midway between emitters and at the edge of the expected root zone.
4. Record how far water moved down and sideways.
5. Adjust spacing, emitter count, or runtime before covering the tubing with mulch.

For a deeper explanation of how texture changes storage and drainage, read clay soil vs. sandy soil watering.

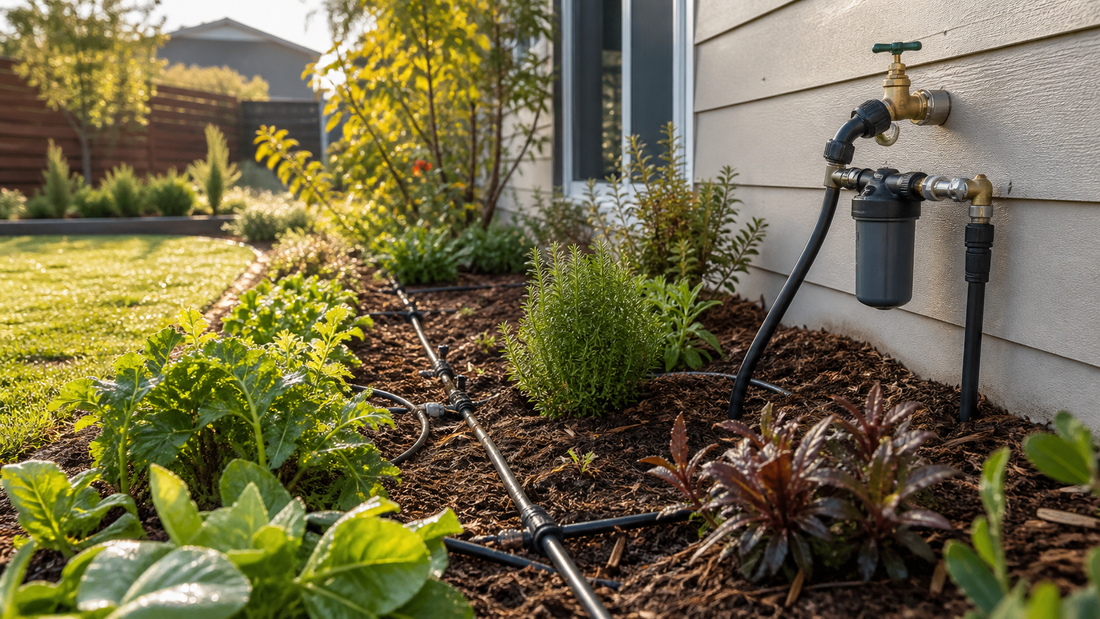

Build the control head in the correct order

A typical zone needs more than tubing. Starting at the supply, the system commonly includes a code-compliant backflow protection method, valve or timer, filter, pressure regulator, mainline, laterals or microtubing, emitters, and flushable end closures. Exact order can vary with the device and installation, so follow local requirements and each manufacturer’s instructions.

• Backflow protection: protects the potable water supply. Requirements vary by jurisdiction and connection type; check the local water or plumbing authority.
• Filter: keeps particles from blocking small emitter passages. Match filtration to the emitter maker and water source.
• Pressure regulator: reduces dynamic pressure to the specified operating range. The EPA’s WaterSense microirrigation technical sheet identifies regulators, filters, and flush-end assemblies as core components.
• Flush end: allows debris to leave the lateral instead of accumulating at its end.

Pressure should be checked while the zone is flowing. Static pressure at a closed faucet does not reveal the friction losses or supply limitations that appear during operation. If you need a primer on that distinction, see our sprinkler pressure testing guide.

Calculate whether the water source can supply the zone

Start with a bucket flow test at the same connection the drip system will use. Measure the bucket volume and the fill time while water is fully flowing:

Available flow (gallons per hour) = bucket gallons ÷ fill seconds × 3,600

If a 2-gallon bucket fills in 24 seconds, the measured source flow is:

2 ÷ 24 × 3,600 = 300 gallons per hour

Colorado State recommends treating 75% of measured source flow as the practical maximum for a zone. In this example, that planning limit is 225 gallons per hour. This margin is useful because pressure and flow can vary when other fixtures run.

Next add every emitter’s rated flow. Forty 1-gallon-per-hour point emitters require 40 gallons per hour. Thirty feet of inline tubing with 0.9-gallon-per-hour emitters every 12 inches contains 30 emitters and adds 27 gallons per hour. The zone total is 67 gallons per hour, comfortably below the 225-gallon-per-hour planning limit in the example.

That calculation checks supply capacity, not pressure uniformity or manufacturer limits. Still verify tubing diameter, lateral length, elevation change, and pressure at representative near and far points.

Turn emitter flow into a starting runtime

For point-source emitters, water delivered per plant is simple:

Gallons per plant = total emitter flow at that plant × runtime in hours

Two 1-gallon-per-hour emitters running for 45 minutes deliver 1.5 gallons around that plant. Whether that is appropriate depends on the species, canopy, weather, soil, root-zone volume, and irrigation interval.

For evenly spaced inline tubing, Utah State provides a useful theoretical application-rate equation:

Inches per hour = emitter flow in gph × 231.1 ÷ (emitter spacing in inches × lateral spacing in inches)

For 0.9-gallon-per-hour emitters spaced 12 inches apart with laterals 18 inches apart:

0.9 × 231.1 ÷ (12 × 18) = 0.96 inch per hour

A theoretical half-inch application would take about 31 minutes. Treat that as a starting estimate. Pressure variation, clogged emitters, nonuniform spacing, mulch, slope, and the actual wetted area can change field performance. Check soil moisture at root depth and adjust.

A practical design and installation sequence

1. Draw the site. Mark the water source, bed dimensions, plant locations, sun exposure, slopes, and elevation changes.
2. Create hydrozones. Separate areas that need different frequency, runtime, or delivery hardware.
3. Choose the delivery pattern. Use inline tubing for dense rows or beds and point-source emitters for separated plants.
4. Measure source flow and flowing pressure. Use the bucket test and an appropriate pressure gauge. Compare the result with component specifications.
5. Build a flow budget. Add the rated flow of every emitter and line on the zone, include a safety margin, and split oversized zones.
6. Install the control components. Use compliant backflow protection, filtration, regulation, and flushable ends. Flush mains and laterals before adding emitters.
7. Run and inspect. Look for leaks, loose fittings, kinked tubing, and weak far-end output.
8. Verify below the surface. Dig test holes after irrigation and adjust spacing or runtime until the active root area is wetted without deep drainage or pooling.
9. Document the layout. Photograph buried crossings and record emitter type, flow, spacing, regulator specification, and zone totals.

The University of California Agriculture and Natural Resources planning guide for home drip systems follows the same logic: map the site, define growing areas, group plants by water requirement, calculate total flow, confirm allowable lengths, plan for plant growth, and retain the design.

Common mistakes that undermine a good design

• Mixing spray and drip on one zone. Their pressure and application rates are incompatible.
• Skipping the filter or flush points. Small passages make clogging a central maintenance issue, not an edge case.
• Buying emitters before mapping plants. Hardware should follow the hydrozone and root-area plan.
• Using emitter color as a universal flow code. Color conventions vary by manufacturer; read the printed specifications.
• Watering only beside the trunk forever. Expand the wetted area as shrubs and trees grow.
• Covering everything before testing. Leave tubing visible until leaks, pressure, flow, and wetting patterns are verified.
• Assuming drip cannot overwater. A low flow applied for too many hours still pushes water below the roots.
• Setting one permanent schedule. Plant demand changes with weather, season, canopy size, and establishment stage.

Scheduling, automation, and maintenance

Start scheduling with measured emitter flow and a root-zone target, then refine using soil observations. Check moisture between emitters, not directly under one, because the wettest point can make the entire bed look better supplied than it is. Increase the interval as new plants establish, and revisit tree layouts as canopies expand.

A faucet-fed zone can be automated with a hose timer, while valve-based landscapes can use a multi-zone irrigation controller. The scheduling device does not correct a bad hydraulic layout; it simply runs the design you give it. If you are deciding how to automate after the zone has passed its field test, browse the current SoilDrops irrigation products and match the control method to the connection and number of zones.

Inspect the system at least monthly during the irrigation season. The University of Arizona recommends cleaning filters, flushing lines periodically, checking emitters and connections, and changing the schedule with weather, season, soil texture, and plant demand. The University of Georgia Extension similarly stresses frequent checks of filters, connections, and emitters. In freezing climates, follow component instructions for draining and winter storage.

Frequently asked questions

Do all drip systems need a pressure regulator?

Most residential drip components are designed for lower pressure than the source provides, so regulation is commonly required. Use the regulator type and outlet pressure specified by the emitter or tubing manufacturer. Measure pressure while the zone is running.

How far apart should drip lines be in a raised bed?

There is no universal spacing. Soil texture, emitter flow and spacing, crop row spacing, and root depth all matter. Twelve-inch lateral spacing is a common starting point in home-garden guidance, but sandy or unusually wide beds may need a different layout. Run the system and inspect moisture midway between lines before finalizing it.

Can I convert one sprinkler head to drip?

Conversion fittings exist, but every outlet on that valve must be considered. Conventional spray and low-flow drip should not operate together on the same zone. A conversion also needs appropriate filtration and pressure regulation.

Should drip tubing go above or below mulch?

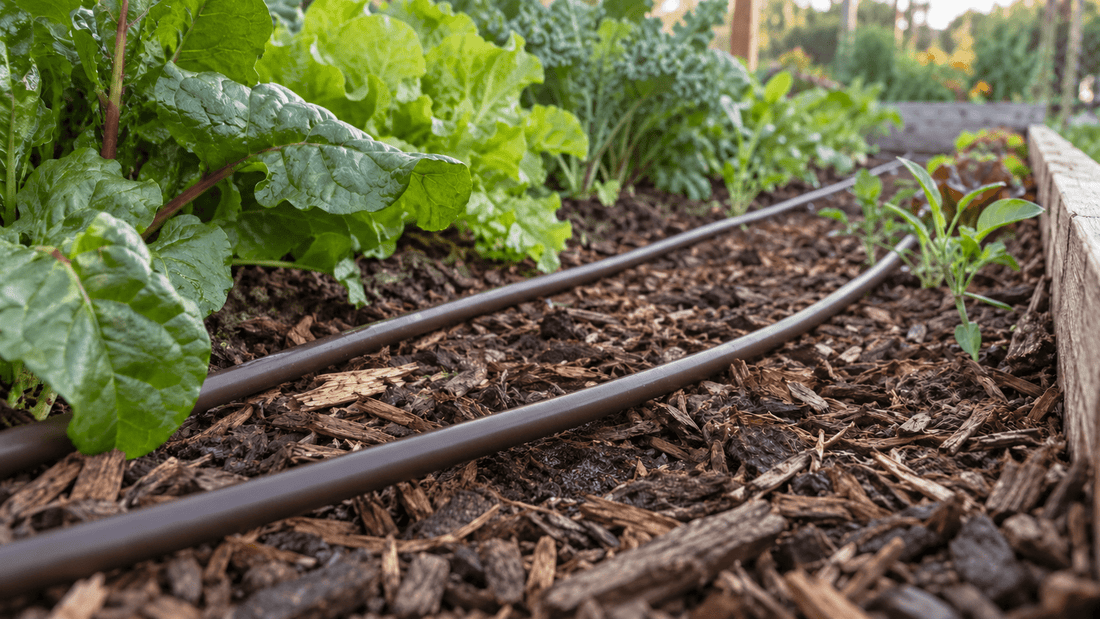

Placing tubing on the soil surface under mulch protects it from sunlight and makes it less visible while retaining access for inspection. Do not bury or cover the layout until it has passed leak and wetting-pattern tests. Keep emitters from becoming packed with soil or debris.

How do I know whether the last emitter is getting enough water?

Compare near- and far-end output using identical containers over the same timed interval, and check dynamic pressure if the product allows it. Large differences point to excessive length or flow, inadequate tubing diameter, elevation effects, clogging, or a supply problem.

How often should I flush a drip system?

There is no single interval for every water source. Flush at installation, after repairs, and whenever debris or uneven flow appears. Inspect filters and emitters regularly during the season; non-potable or mineral-rich water may require more frequent maintenance and specialized filtration.

Design on paper, then prove it in soil

The most reliable drip system is not the one with the most fittings. It is the one whose zones match plant demand, whose total flow fits the supply, and whose wetted pattern has been checked below the surface. Make the sketch, do the bucket math, install the required control components, and leave time for one test-and-adjust cycle. That small commissioning step turns a collection of tubing into an irrigation system you can schedule with confidence.
