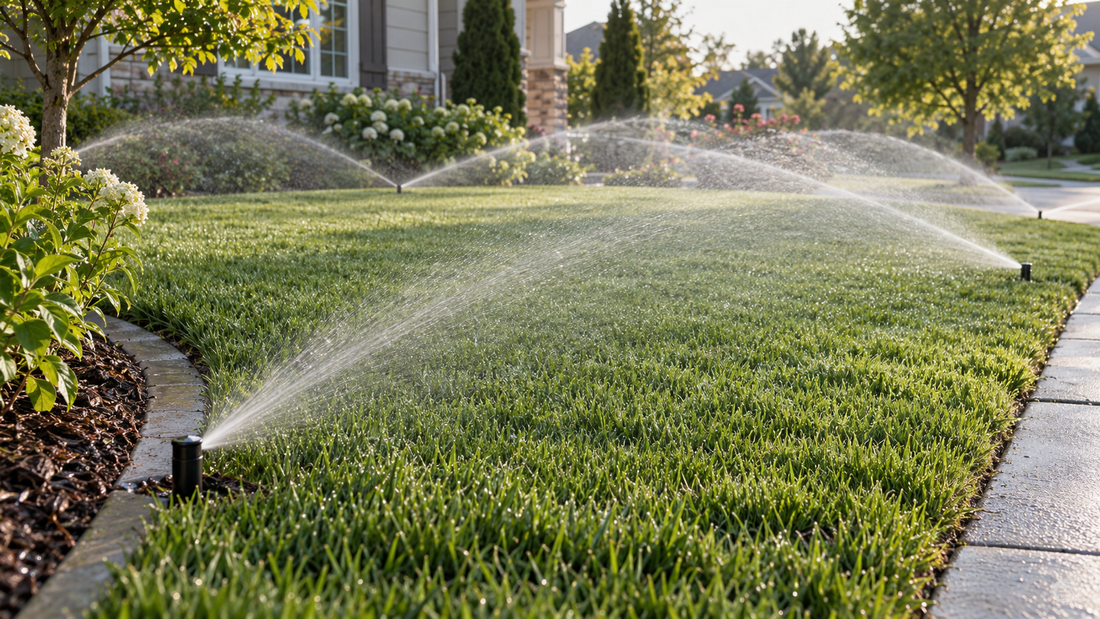

Wide lawn with sprinkler heads arranged for overlapping coverage

Map Sprinkler Head Spacing Before You Move Anything

When one stripe of lawn stays dry, the obvious reaction is to add minutes to the irrigation schedule. That may make the green areas wetter without solving the dry stripe. The underlying problem can be geometric: a sprinkler is being asked to cover an area that its neighbors do not reach.

A spacing audit helps you separate that problem from low pressure, a clogged nozzle, a tilted head, wind, or a scheduling mistake. The work starts with a tape measure and a sketch—not a shovel. This guide shows how to map the heads that are already in the ground, compare spacing with their real operating throw, and decide what to correct before moving anything.

What “head-to-head” coverage actually means

Sprinkler spray is not equally heavy from the head to the edge of its pattern. A single head may wet the ground near it differently from the ground at its farthest reach. Overlap allows neighboring patterns to fill in those differences. Colorado State University Extension summarizes the layout rule plainly: the distance between sprinkler heads should not be greater than the radius of throw, and heads along an edge should spray inward toward the landscape.

That is the idea behind head-to-head coverage. If a sprinkler has a reliable 12-foot radius under the pressure and wind conditions in your yard, the neighboring compatible head would normally be no farther than about 12 feet away. Radius is the distance from a head to the edge of its wetted pattern. Diameter is twice that distance. Confusing the two is an easy way to leave a dry band between heads.

Two lawn sprinklers whose spray reaches the neighboring head
Head-to-head coverage means each compatible sprinkler reaches the neighboring head, so their patterns overlap.

Do not treat the radius printed on a nozzle package as a guaranteed field measurement. Manufacturer performance charts pair a nozzle with operating pressure, flow, and expected radius. Your installed result can be shorter because of pressure loss, elevation, a dirty filter, a partially closed valve, worn parts, or wind. It can also look longer if fine mist drifts beyond the useful pattern. The map should record both the equipment and what the zone does in the field.

Audit one zone before you redesign the yard

Work on one irrigation zone at a time. Heads on the same zone operate together and share the available flow and pressure. If you map several zones as though they were one system, you can miss the hydraulic reason a head falls short.

1. Run the zone and flag every operating head

Start with a short manual run. Walk the zone from one end to the other and place a small utility flag beside each head. Mark heads hidden by turf or groundcover, but keep hands and tools away from moving rotors. Note any head that does not rise, leaks around the body, sits below grade, leans, or sprays into a plant trunk, wall, or fence.

Use your controller's manual or quick-run function only long enough to observe the zone. If a head is buried or blocked, correct visibility and clearance before judging its throw. Utah State University Extension includes trimming vegetation, raising sunken heads, and aligning tilted or misdirected heads among the basic steps for restoring application uniformity.

2. Identify the head family, nozzle, and arc

For each flag, record whether the device is a fixed spray, rotary nozzle, gear-driven rotor, bubbler, or another type. Look for a nozzle number or model marking without disassembling pressurized equipment. Also note the arc: quarter-circle, half-circle, full-circle, or an adjustable angle.

A zone that mixes equipment with very different application rates can create wet and dry areas even when the spacing looks reasonable. Hunter's residential design guide advises against mixing sprinkler types within a zone. Within one matched family, arc-specific nozzles may also need proportional flow. A full-circle head covers about four times the area of a quarter-circle head; manufacturer-matched precipitation nozzles account for that difference.

3. Measure center-to-center spacing

Measure from the center of one head to the center of its neighbor, not from one spray edge to another. Record the distance on a simple sketch. Include heads across the lawn as well as those along the same edge. For an irregular bed or curved lawn, draw the boundary first and plot each head approximately where it sits.

Homeowner measuring the distance between flagged sprinkler heads
Measure center to center, and map one operating zone at a time.

4. Measure useful throw while the zone is running

Choose a calm period and run the zone at its normal operating condition. For each representative head, measure from the head to the part of the pattern that receives useful water—not to a few drifting droplets. A long tape measure or premeasured cord makes the job easier. Record the shortest repeatable radius you observe, especially along the direction where coverage is weakest.

Compare that radius with the center-to-center distance. A 14-foot gap served by heads that reliably throw only 11 feet contains a geometric shortfall. A 10-foot gap where one supposedly 12-foot head reaches only 7 feet may point instead to pressure, nozzle, or maintenance trouble.

5. Draw arcs and look for unsupported areas

Add each head's intended arc to the sketch. Corners generally use quarter patterns, straight edges use half patterns, and interior locations may use full patterns. The exact nozzle selection must follow the manufacturer's performance data for that model.

A disciplined layout starts with corners, continues around the perimeter, and then fills the interior. That sequence appears in the Hunter residential design guidance linked above because boundaries determine where overspray must be controlled. It also makes missing coverage easier to see: a narrow triangle between arcs, a concave corner, or the inside of a curve can remain unsupported even when neighboring measurements look acceptable.

Overhead view of sprinkler coverage around an irregular lawn
Curves and concave edges need a boundary-first map; equal-looking gaps do not always produce complete overlap.

6. Check pressure, nozzles, and obstructions before moving a head

High pressure can turn a coherent spray into mist. The U.S. Environmental Protection Agency notes that excessive pressure can cause misting, fogging, and uneven coverage. Low pressure can prevent a head from reaching its designed radius. A sprinkler pressure test helps distinguish those conditions from a spacing problem.

Then inspect for a clogged or damaged nozzle, a missing filter screen, a tilted body, turf blocking the stream, and an arc aimed away from the intended area. Compare like heads on the same zone. If every head is short, look upstream. If one is short while its neighbors behave normally, inspect that location first.

7. Verify the result with catch cups

A tape measure tells you whether patterns reach one another; it does not tell you how evenly water lands. After maintenance or layout changes, perform a catch-cup test. Place identical containers across representative wet and dry areas, run the zone for a measured time, and compare the captured depths. That test reveals distribution problems that are hard to judge by watching spray in the air.

Square and triangular layouts serve different shapes

On paper, sprinkler layouts are often organized as square or triangular patterns. In a square pattern, heads align in rows and columns. In a triangular pattern, each row is offset so the heads form equilateral triangles. The offset can improve overlap and fit some open areas better, but it does not permit a designer to ignore real throw or boundary overspray.

For an equilateral triangular layout, the perpendicular distance between rows is about 0.866 times the head spacing. If compatible heads are 12 feet apart within a row, the next row would be about 10.4 feet away because 12 × 0.866 = 10.392. Rain Bird's irrigation design manual uses this relationship in its triangular-spacing geometry. It remains only a starting layout calculation: pressure, nozzle performance, wind, slope, and the actual site still govern the final design.

A rectangular lawn can be mapped just as plainly. Suppose the area is 24 by 36 feet and the selected heads provide a verified 12-foot useful radius. A conceptual square grid would put head centers at 0, 12, and 24 feet across the short dimension and at 0, 12, 24, and 36 feet along the long dimension. Corner, edge, and interior arcs would then be selected to keep water inside the boundary. Before installing that plan, a designer still has to confirm that the pipe, valves, available flow, and operating pressure can support the heads assigned to each zone.

Six problems that can imitate bad spacing

  • Pressure is too high. Fine droplets drift and evaporate more readily, while the useful pattern becomes less uniform. Pressure-regulated spray bodies can help when they are appropriate for the system.
  • Pressure is too low. Heads may fail to rise fully or reach the neighboring head. The cause can be supply limitations, too many heads on a zone, a restriction, or a leak.
  • The nozzle does not match its neighbors. A replacement with a different family, radius, or precipitation rate can produce a local wet or dry patch.
  • The head is blocked or tilted. Tall turf, a shrub, settled soil, or mower damage can intercept or redirect the stream.
  • The arcs are not proportioned. A quarter-, half-, and full-circle head cover different areas. Without matched precipitation, equal runtimes do not necessarily apply equal depth.
  • Wind distorts the pattern. Audit during a calmer window and treat consistently windy exposures as a design constraint, not a reason to lengthen every runtime.

If you want to quantify how much water the whole zone uses while you diagnose it, follow the zone-by-zone water measurement method. Flow is useful hydraulic evidence, but it does not replace a coverage map or catch-cup results.

Common layout mistakes to avoid

Using catalog radius as installed radius. Performance data is tied to test conditions. Measure the operating system and compare it with the chart instead of choosing whichever number is most convenient.

Moving one head in isolation. Relocating a head changes its relationship with several neighbors. Redraw the affected arcs and check the boundary before digging.

Stretching spacing to reduce the head count. Fewer heads may reduce material cost, but a gap beyond reliable throw cannot be repaired by adding runtime. It usually increases the difference between wet and dry areas.

Using the arc adjustment to solve every problem. An arc setting changes direction; it does not guarantee the correct radius, flow, or precipitation rate. Follow the model-specific adjustment limits and performance chart.

Mixing sprays and rotors on one schedule. Different application rates can require different runtimes. The sprinkler-head comparison explains why head type and site conditions matter more than a simple “best” ranking.

Expecting the controller to repair hardware. A controller can manage when a functioning zone runs; it cannot make a blocked nozzle, pressure fault, or missing overlap distribute water evenly. Mechanical coverage comes first. Once the zones apply water uniformly, a compatible controller such as the SoilDrops Controller Gen 2 can handle scheduling without being asked to compensate for a dry stripe.

When to adjust, redesign, or call a professional

Cleaning a nozzle, trimming an obstruction, straightening a body, or correcting an arc may restore coverage without changing the layout. A consistent gap between otherwise healthy heads calls for a broader design review. Adding or moving heads can change zone flow and pressure, so the fix is not simply to connect another sprinkler to the nearest pipe.

Consider professional help when the work requires trenching near utilities, changing valves or pipe sizing, modifying backflow components, solving large elevation changes, or redesigning a zone with mixed equipment. Local rules may govern backflow protection and irrigation work. Call the applicable utility-location service before digging and follow local codes.

Frequently asked questions

How far apart should lawn sprinkler heads be?

There is no single distance for every head. A useful starting rule is that the spacing should not exceed the compatible head's reliable radius of throw under actual operating conditions. Confirm the model's performance chart, then measure the installed zone.

Does head-to-head coverage mean the water must hit the next sprinkler?

It means the useful pattern from one head reaches the neighboring head location. A few drifting droplets do not count. The goal is overlapping application, which should then be checked with catch cups.

Is triangular spacing always better than square spacing?

No. Triangular spacing can provide strong overlap in open areas, while square layouts often fit rectangular boundaries more directly. The site shape, equipment, pressure, wind, and overspray constraints determine which layout is appropriate.

Can I turn the radius screw to fix a spacing problem?

Only within the adjustment range allowed for that nozzle or rotor. A large radius reduction can change pattern quality and application. Consult the manufacturer's instructions; if the required throw is outside the model's range, select appropriate equipment instead of forcing the adjustment.

Will running the zone longer fix a dry gap?

Not usually. Longer runtime adds water everywhere the zone already reaches. If the dry gap lacks overlap, the wet areas may become wetter while the gap remains comparatively dry. Repair the distribution problem first, then set runtime from measured application and landscape need.

How do I know whether spacing or pressure is the real problem?

Map the center-to-center distances, observe the useful radius, and compare multiple heads on the same zone. A uniform shortfall across the zone suggests a system-level pressure or flow issue. One weak head suggests a local nozzle, filter, damage, or obstruction problem. Confirm pressure with the correct gauge and verify distribution with catch cups.

Use the map to choose the next repair

Your finished sketch should show zone boundaries, head locations, spacing, arcs, head types, measured throw, and any pressure or maintenance symptoms. That is enough to decide whether the next step is cleaning and alignment, a pressure diagnosis, nozzle correction, or a true layout redesign.

Start with the least invasive correction, rerun the zone, and repeat the catch-cup test. When coverage is even, use the measured application rate and your soil and plant needs to set the schedule. That sequence—distribution first, runtime second—prevents a controller from masking a mechanical problem with extra watering.
