Rain Sensor vs. Soil Moisture Sensor: Which One Actually Saves Water on a Home Irrigation System?

If your sprinkler controller has any kind of "smart" feature, it's almost certainly tied to one of two devices: a rain sensor bolted to the eave of your house, or a soil moisture sensor buried in the lawn. Both promise to skip irrigation when nature has already done the job. Both qualify systems for utility rebates and EPA WaterSense compliance. But the research on what each one actually saves on a residential lawn is dramatically different — and most homeowners install the wrong one for their situation. This guide walks through the rain sensor vs soil moisture sensor question the way the irrigation researchers at the University of Florida and EPA WaterSense actually frame it: by what each device measures, how it fails, and how much water it saves once it's been on a real lawn for a year.

The short version: rain sensors are cheap insurance against the most embarrassing kind of waste — running sprinklers in the rain. Soil moisture sensors are the only device that actually answers the question your sprinkler should be asking: "do my plants need water right now?" The longer version, with the data, is below.

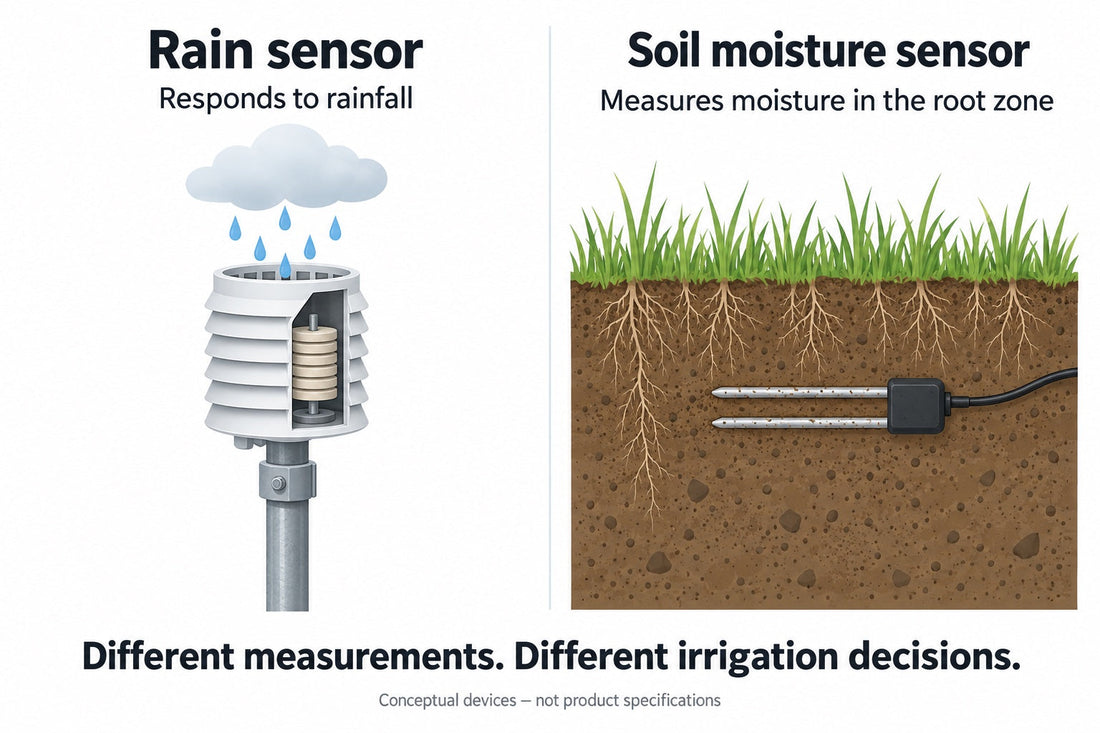

What each sensor actually measures

The two devices look like irrigation accessories from the same shelf, but they're trying to do completely different things.

A rain sensor (sometimes sold as a "rainfall shutoff device") measures one thing: how much rain has fallen on the sensor itself in the recent past. Most homeowner units use a stack of cork-like hygroscopic disks inside a small vented housing. The disks swell when wet and trigger a switch that interrupts the irrigation circuit, then slowly dry out and re-arm the system. According to the University of Florida IFAS publication on rainfall shutoff devices (AE221), this is the dominant technology in residential use and the one Florida law actually requires on automatic irrigation systems statewide.

A soil moisture sensor measures something completely different: the volumetric water content of the soil at root depth, usually expressed as a percentage. Modern residential sensors use capacitance or time-domain transmissometry to detect how much water sits between the soil particles around the probe. The UF/IFAS smart irrigation controller fact sheet (AE437) describes the basic logic: the sensor reports a moisture value, the controller compares it to a user-set threshold, and irrigation is allowed to run only when the soil is drier than that threshold.

The difference between "did it rain on my house?" and "is my soil dry enough to water?" sounds subtle. In practice, it's the difference between a sensor that catches the obvious mistakes and a sensor that runs your entire watering schedule.

How much water does each one really save?

This is where the published data gets interesting, and where the marketing claims fall apart. A clock-only timer wastes water for two reasons: it doesn't know it just rained, and it doesn't know whether the soil from the last cycle has dried out yet. A rain sensor solves the first problem. A soil moisture sensor solves both.

The two technologies have been studied side by side for almost two decades, primarily by Michael Dukes' group at the University of Florida. Their published results, summarized in the EDIS smart irrigation controller publication and a series of peer-reviewed papers, look roughly like this:

Device	Typical residential water savings vs. clock timer	Source
Expanding-disk rain sensor (1/4-inch threshold)	~7–34%, depending on rainfall and threshold	UF/IFAS AE221 / Cardenas-Lailhacar & Dukes
Rain sensor in actual residential field test (Pinellas Co., FL)	~19% over a season	Haley & Dukes IA conference paper
Soil moisture sensor controller (residential field)	~65–72% vs. homeowner schedules	McCready, Dukes & Miller, Agricultural Water Management, 2009
Soil moisture sensor (turf research plots, calibrated)	Up to 88–92% vs. fixed schedule	EPA WaterSense soil moisture controller page

Two numbers do the heavy lifting in that table. The first is the rain sensor's ~19% real-world savings on residential lawns — useful, but a long way from the "smart irrigation" headline numbers. The second is the soil moisture sensor's 65%+ savings, which is what makes the EPA WaterSense statistics page claim that an average home with a smart controller can save up to 15,000 gallons per year.

Why such a big gap? Because most of the irrigation a clock timer wastes isn't on rainy days. It's on the cool, cloudy stretch after a rain, when the soil is still saturated but the sky is dry. A rain sensor's hygroscopic disks dry out in roughly 19 hours under typical Florida conditions, per Cardenas and Dukes 2018, while the actual soil under a Bermuda or St. Augustine lawn often stays wet enough to skip irrigation for 5–10 days. The rain sensor's job ends 24 hours after the storm. The soil moisture sensor's job is just beginning.

Failure modes: what goes wrong with each sensor

Both technologies have well-documented failure modes. The marketing rarely mentions them; the extension literature does.

Rain sensors degrade over time

The peer-reviewed long-term performance data on expanding-disk rain sensors is unflattering. A 2012 study in the Journal of Irrigation and Drainage Engineering by Cardenas-Lailhacar and Dukes tested rain sensors over multiple years and found measured accuracy ranging from 27% to 97%, with sensors at low thresholds becoming less sensitive as their disks aged. Hunter Industries' own service documentation recommends replacing the popular Rain-Clik and Mini-Clik units after roughly one year for consistent behavior. Most homeowners install one and never touch it again.

A second failure mode is wiring. A rain sensor that's been disconnected, flipped to "bypass," or had its wire chewed by a squirrel will never trigger — and the controller has no way to know. The UF/IFAS AE221 fact sheet notes that field surveys have repeatedly found rain sensors that were installed but not actually wired into the controller, or were bypassed at the controller and forgotten.

Soil moisture sensors need calibration to the soil they're in

Soil moisture sensors don't suffer from disk degradation, but they have their own gotcha: factory-default thresholds are usually calibrated for loam, and most lawns aren't loam. The University of Florida IFAS publication AE460 (Interpretation of Soil Moisture Content) walks through how the same volumetric water content reading means very different things in sand versus clay — and how an out-of-the-box setpoint can over-irrigate sandy soil or under-irrigate heavy clay if it isn't adjusted. (We covered why in our guide on clay vs. sandy soil watering.)

The other soil-moisture failure mode is placement. A sensor stuck in a dry spot near a south-facing fence will report drier-than-average readings and run zones longer than they need. A sensor in the shade under a tree will report wetter readings than the rest of the yard. The right install puts the sensor in a representative part of the zone — open turf, root depth, away from sprinkler heads — and ideally one sensor per zone with significantly different sun, slope, or soil. University of Minnesota Extension's irrigation scheduling guide has a detailed walkthrough.

Reaction speed: where rain sensors actually win

To be fair to rain sensors, there's one job they do better than soil moisture sensors: stopping a cycle that's about to start in the middle of a downpour. A rain sensor on the eave gets wet within seconds of the first drop. A soil moisture sensor at four inches deep won't see that water for 30 minutes to several hours, depending on soil texture and intensity.

For homeowners on heavy clay or compacted suburban soils, where surface runoff during a hard rain can take a long time to actually reach the sensor, this delay matters. Cardenas, Dukes, et al. (Vadose Zone Journal, 2018) measured this directly: rain sensor dry-out times of about 19 hours were typically shorter than the time soil at root depth stayed above an irrigation threshold, but during the storm itself the rain sensor was the faster shutoff device.

That's the engineering case for using both: a soil moisture sensor to govern the long-run schedule, and a rain sensor (or a forecast-fed weather skip) to handle the live-rainfall edge case. EPA WaterSense's labeled controller program actually allows either approach — soil-moisture-based or weather-based plus a rain sensor — and certifies them on equal footing.

Cost and payback: what the studies say

Hardware costs for the two categories haven't changed much in five years. A wired expanding-disk rain sensor runs $20–$50; a wireless one with a couple of years of battery life is $40–$80. A residential soil moisture sensor that talks to a smart controller is $35–$80 per zone, plus the controller itself.

The published payback math, however, is wildly in the soil moisture sensor's favor when there's enough irrigation to save. UF/IFAS researchers calculated payback periods of under one year for rain sensors at low thresholds and about four months for an expanding-disk rain sensor in a 16-month follow-up study (Cardenas et al., 2020). For soil moisture sensors, the residential field studies in McCready and Dukes (2012) and the Tampa Bay Water Sensing Savings program have generally shown payback in the same range — under a year for households with seasonal irrigation bills above $50/month — but with a much larger absolute saving at the end of the year.

The simplest way to think about it: a rain sensor is a $30 fix for the most visible 20% of irrigation waste. A soil moisture sensor is a per-zone investment that addresses the other 60–70%, the part nobody can see.

When a rain sensor is the right call

Rain sensors aren't obsolete. There are still situations where one is the right tool:

• You're in a region with frequent, hard, brief storms. Florida summer thunderstorms, Gulf Coast squalls, and Front Range afternoon downpours all fit. A rain sensor catches the during-storm waste better than anything else.
• You're complying with a local ordinance. Florida statute (FS 373.62) and several other states require some form of rainfall shutoff on automatic irrigation systems. A rain sensor is the simplest way to comply.
• You have a basic clock controller and no plans to upgrade. If you're not adding a smart controller, a rain sensor is the cheapest meaningful improvement you can make.
• You want a redundant shutoff alongside a soil moisture sensor. The two devices fail in different ways, and using both gives you belt-and-suspenders protection.

When a soil moisture sensor is the right call

For most homeowners, the better question isn't "rain sensor or soil moisture sensor?" — it's "do I have any sensor that knows when to skip irrigation that isn't raining?" If the answer is no, a soil moisture sensor is the upgrade with the largest documented water savings on a residential lawn:

• You water more than 1–2 zones automatically. The savings scale with the number of zones — every zone gets its own runtime decision.
• Your soil is heterogeneous. Clay in one part of the yard, sand in another, slopes vs. flats — the soil moisture sensor measures each zone where it actually is, instead of a single rain reading at the eave.
• You have shaded zones that have been overwatered for years. These are the zones a rain sensor can't help. They get the same rain as the sunny zones and the same long runtime, but they need a fraction of the water. A moisture sensor catches that automatically.
• You're chasing the EPA WaterSense or utility rebate that requires a labeled smart controller. Soil-moisture-based controllers qualify under the same WaterSense specification as weather-based ones.

This is where Soildrops fits in the hardware landscape. The wireless Soildrops moisture sensor reads volumetric water content at root depth to ±3% accuracy and pairs with our 8-zone WiFi controller in three modes: Autopilot (pure sensor-driven), Smart (weather-based with a rain skip), and Manual. Most users see 30–50% water savings in the first season, which lines up with the lower end of the published soil moisture sensor research and the upper end of the rain sensor research. If you're starting from scratch, the starter kit bundles include the controller plus one or more sensors so you don't have to mix and match.

Putting it together: a decision framework

Three questions, in order:

1. Do I have any rainfall shutoff today? If no, install a rain sensor or upgrade to a smart controller — don't argue about which is better while your sprinklers run in the rain.
2. Am I willing to upgrade the controller? If yes, a soil moisture sensor is the higher-savings device by a wide margin; pair it with a forecast-aware rain skip if your area gets sudden hard storms. If no, a rain sensor is the meaningful upgrade you can make for $30–$50.
3. Do I have multiple zones with different sun, soil, or slope? If yes, the per-zone resolution of soil moisture sensors is what unlocks the big savings — a single rain sensor on the house doesn't see those differences.

That's it. The "rain sensor vs soil moisture sensor" debate ends up being a question of how much of the irrigation waste you actually want to address. A rain sensor handles the most obvious 15–20%. A soil moisture sensor, properly installed and calibrated, handles the rest.

FAQ

Does a smart controller still need a rain sensor?

It depends on the controller. A weather-based controller using forecast and ET data benefits from a physical rain sensor as a fail-safe in case the forecast is wrong. A soil-moisture-based controller already knows whether the ground is wet, but a rain sensor still adds value as a same-storm shutoff and is required by law in some states regardless. EPA WaterSense allows either configuration; some utilities require both for full rebates.

Are wireless rain sensors more accurate than wired ones?

No. The hygroscopic-disk mechanism is the same; the wireless version just replaces the low-voltage wire with a radio link. Accuracy and dry-out time are both governed by the disks, which is why Cardenas et al. (2012) found similar performance across major brands and recommend replacing units that have been in service more than a year.

Will a soil moisture sensor work on clay soil?

Yes, but the threshold needs to be set for clay. Clay holds onto water tightly, so the volumetric water content at "field capacity" is much higher than in sand, and not all of that water is plant-available. The UF/IFAS sensor calibration guide walks through how to set thresholds by soil texture; we cover the lawn-owner version in our soil texture watering guide.

How many soil moisture sensors do I need?

One per microclimate. Zones that share the same sun exposure, soil texture, and slope can share a sensor. Zones that differ on any of those — full sun lawn vs. shaded side yard, sandy front yard vs. clay back yard, flat vs. sloped — should each have their own sensor for the savings numbers in the research to translate to your yard. Two to four sensors covers most suburban properties.

Do rain sensors and soil moisture sensors qualify for rebates?

Many water utilities offer rebates on both, especially in the Southwest and Florida, but the soil moisture sensor rebates are usually larger because the documented water savings are larger. Check your local provider — programs change yearly. The EPA's WaterSense product search is the cleanest way to see which controllers and sensors qualify under a single specification.

Will a soil moisture sensor save water on a brand-new lawn?

Eventually, but not on day one. New sod and seedlings need consistent surface moisture for roots to establish, which is the opposite of the deep-and-infrequent schedule a moisture sensor optimizes for. Most controllers (including Soildrops) have an "establishment" mode that suspends sensor logic for the first 2–4 weeks. After establishment, switch to sensor-driven mode and let the moisture readings take over. We covered this in our how often should you water your lawn guide.
